- Micro Gas Chromatograph -LAD120
The micro rapid chromatography analyzer is specially designed to accurately measure the concentration of SO2 in various sections of a sulphuric acid plant. Based on these measurements, the operational efficiency of the plant can be optimized, catalyst activity can be evaluated, and leakage detection of the heat exchanger can be performed.
By analyzing the big data of the stage conversion rate, the analyzer provides a scientific basis for the screening and filling of each catalyst, effectively preventing the environmental emission problem caused by too much or insufficient catalyst filling, and avoiding frequent installation maintenance, thus saving the enterprise the huge economic loss that may be generated.
The application of the LAD120 analyzer avoids the errors that may occur in the measurement of the traditional iodine liquid method, and ensures the high precision, rapidity, simple operation and good repeatability of the measurement, while no smoke emission. Importing the analyzer data into the digital sulfuric acid system can effectively solve and optimize the thermal efficiency, conversion rate, heat exchanger leakage and system resistance analysis during the whole life cycle of the device.

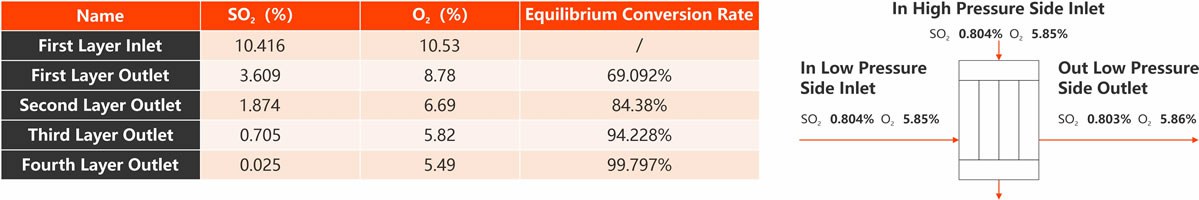

- Measurement Of Fractional Conversion Rate Of Converter
Simple, fast and accurate analysis of sulfur dioxide (SO2) and oxygen (O2) content in each section of the converter, and the built-in sulfuric acid health analysis system automatically calculates the equilibrium conversion rate of each section. The system carries out big data analysis in real time to provide the solution of screening and catalyst loading for the planned maintenance of the plant.
.jpg)
- System Leak Detection
Timely understanding of the operation of the heat exchange equipment is essential to maintain the efficient conversion of the system. By comparing the concentration difference of SO2 and O2 at the inlet and outlet of the low pressure side of the heat exchange equipment, we can determine whether the equipment has leakage problems.
.jpg)
- Product Advantage
.png)
In order to improve the efficiency of plant operation, we need to identify the potential risks of equipment in a timely manner.
We can quickly determine the content of a variety of components in a sulfuric acid plant, Including but not limited to CO, CO2, N2, O2, H2O, SO2, H2S, CH4, etc. The measuring system covers a wide measurement range and is capable of analyzing complex samples from high percentage to low ppm levels, in particular, it is able to detect SO2 levels as low as 20 PPM.
It is used in conjunction with the flue gas sealed sampler to provide a comfortable sampling environment for the analyst. There are anti-blocking system real-time detection sampling pipe, pipe dredging function and system resistance analysis function.
The application of the system will avoid the emission of high concentration SO2, SO3 into the atmosphere, effectively reducing the corrosion of factory equipment and improving our working environment.
